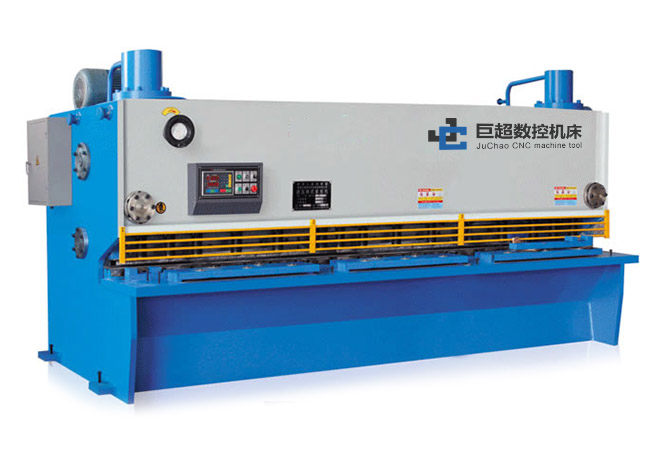

QC11Y/K系列液壓閘式剪板機

7*24小時咨詢熱線：13912409682

詳細介紹

規(guī)格型號	可剪板厚(mm)	可剪板寬(mm)	行程次數(shù) (time/min)	后擋料行程(mm)	剪切角度(°)	工作臺高度(mm)	電機功率(kw)
QC11Y/k 6×2500	6	2500	14-30	20-600	0.5-2	800	7.5
QC11Y/k 6×3200	6	3200	12-28	20-600	0.5-2	800	7.5
QC11Y/k 6×4000	6	4000	10-24	20-600	0.5-2	800	7.5
QC11Y/k 6×6000	6	6000	6-18	20-600	0.5-2	850	15
QC11Y/k 8×2500	8	2500	12-28	20-600	0.5-2	800	11
QC11Y/k 8×3200	8	3200	10-24	20-600	0.5-2	800	11
QC11Y/k 8×4000	8	4000	8-20	20-600	0.5-2	800	11
QC11Y/k 8×6000	8	6000	6-16	20-600	0.5-2	850	15
QC11Y/k 10×2500	10	2500	12-28	20-600	0.5-2	800	15
QC11Y/K 10×3200	10	3200	10-20	20-600	0.5-2	800	15
QC11Y/K 10×4000	10	4000	8-20	20-600	0.5-2	800	15
QC11Y/K 10×6000	12	3200	6-16	20-600	0.5-2	850	18.5
QC11Y/K 12×2500	12	2500	10-24	20-600	0.5-2.5	800	15
QC11Y/K 12×3200	12	3200	8-16	20-600	0.5-2.5	800	18.5
QC11Y/K 12×4000	12	4000	6-14	20-600	0.5-2.5	800	18.5
QC11Y/K 12×6000	12	6000	4-16	20-780	0.5-2.5	900	30
QC11Y/K 16×2500	16	2500	8-14	20-600	0.5-2.5	800	18.5
QC11Y/K 16×3200	16	3200	6-10	20-780	0.5-2.5	800	22
QC11Y/K 16×4000	16	4000	5-10	20-780	0.5-2.5	800	22
QC11Y/K 16×6000	16	6000	4-16	20-780	0.5-2.5	1000	37
QC11Y/K 20×2500	20	2500	5-18	20-780	0.5-2.5	850	30
QC11Y/K 20×3200	20	3200	5-16	20-780	0.5-2.5	900	30
QC11Y/K 20×4000	20	4000	4-16	20-780	0.5-2.5	900	37
QC11Y/K 20×6000	20	6000	4-14	20-780	0.5-2.5	1000	45
QC11Y/K 25×2500	25	2500	5-16	20-780	0.5-3	900	37
QC11Y/K 25×3200	25	3200	4-16	20-780	0.5-3	900	37
QC11Y/K 25×4000	25	4000	4-16	20-780	0.5-3	1000	45
QC11Y/K 25×6000	25	6000	4-14	20-780	0.5-3	1100	55
QC11Y/K 30×2500	30	2500	5-16	20-780	0.5-3.5	1000	45
QC11Y/K 30×3200	30	3200	5-10	20-780	0.5-3.5	1100	55
QC11Y/K 30×4000	30	4000	4-10	20-780	0.5-3.5	1200	55
QC1Y/K 40×2500	40	2500	3-8	20-780	0.5-4	1200	60
QC1Y/K 40×3200	40	3200	3-8	20-780	0.5-4	1200	60

由于產(chǎn)品在不斷改進中，參數(shù)如有變更，恕不另行通知！
